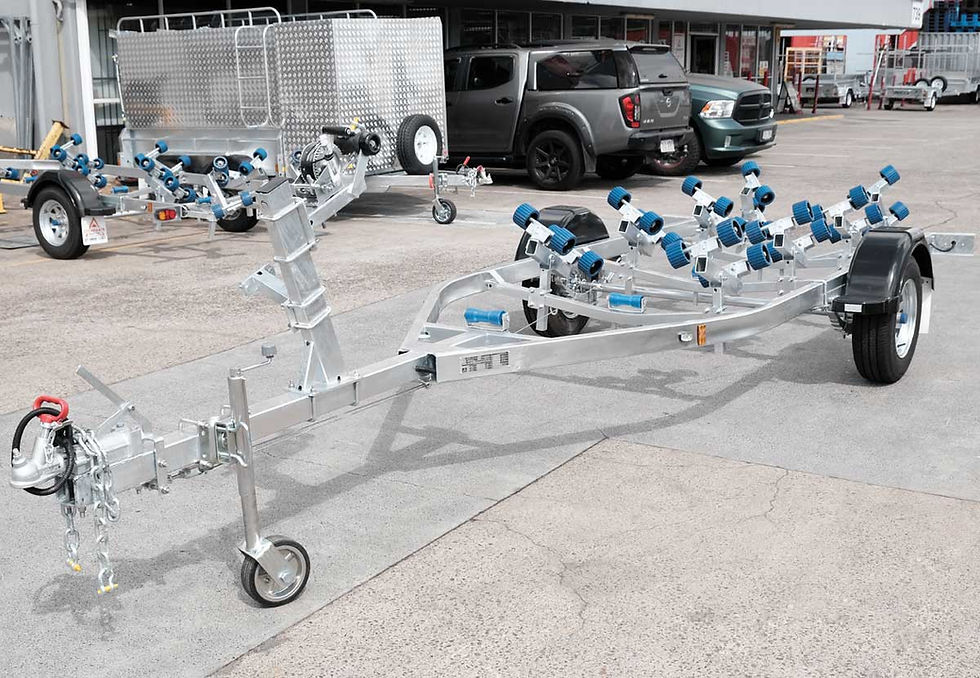

• Hot Dipped Galvanised (Rust Free) – 1400KG ATM



• Fits 4.5m – 5.5m Boats



• 14″ Brand New Hot Dipped Galvanised Rims and Light Truck Tyres



• Hand Winch with Strap and Hook



• 50mm Round Solid Axle



• Skid Type or Wobble Rollers



• Fully Welded Chassis & Body



• 7 Leaf Springs Dacromet Treated



• LED Submersible Tail Lights



• Mechanical Over-rider Cable Actuated Disc Brakes



• Free Swing up Jockey Wheel



• ADR Standard Heavy Duty Chain & Load Rated Shackle



• Flat 7 Pin Plug



• Distance Between Guards: 1.55 Meters



• Chassis Main Beam Size: 50mm x 100mm x 3mm



• Cross Bar Size: 50mm x 50mm x 2.5mm



• Trailer Tare Weight: 330Kg



• Trailer Overall Length: 5.8m x 2m



• 24-month Warranty

• 14″ Galvanised Spare Wheel - $210



Stonegate Townsville | Your Local Trailer Experts

Give us a call on (07) 4728 9888 or email us at sales@stonegatetownsville.com.au for more information.



2-Year Limited Warranty

Stonegate Industries warrants the boat trailer frame, including the coupling and rims (excluding tyres), to be free from structural or welding defects for two (2) years from the date of original purchase.



1-Year Limited Warranty

The following components are covered for one (1) year from the date of original purchase:

• Hot-dipped galvanised surface finish
• Lights, bearings, seals
• Hydraulic braking equipment

Note: The winch, axles, and springs are not covered under this warranty.



Boat Trailer Setup & Maintenance Disclaimer

• Trailer Setup: Ensure your trailer is properly adjusted to suit your boat. It is the owner’s responsibility to confirm correct setup and fitment.
• Each Boat is Different: Every boat has unique design and weight characteristics; therefore, trailer setup requirements may vary.
• Corrosion Protection: In addition to regular servicing, apply a corrosion protectant before launching to help prevent and control rust.
• Galvanised Trailers: Galvanising provides corrosion resistance but does not eliminate it. Always wash your trailer thoroughly with fresh water after each use.
